304 Stainless Tube Drain Lines for a Nitrogen Generator System

Close-up of stainless steel instrument tubing with compression fittings feeding a gray cast valve body, beside a welded stainless pipe elbow

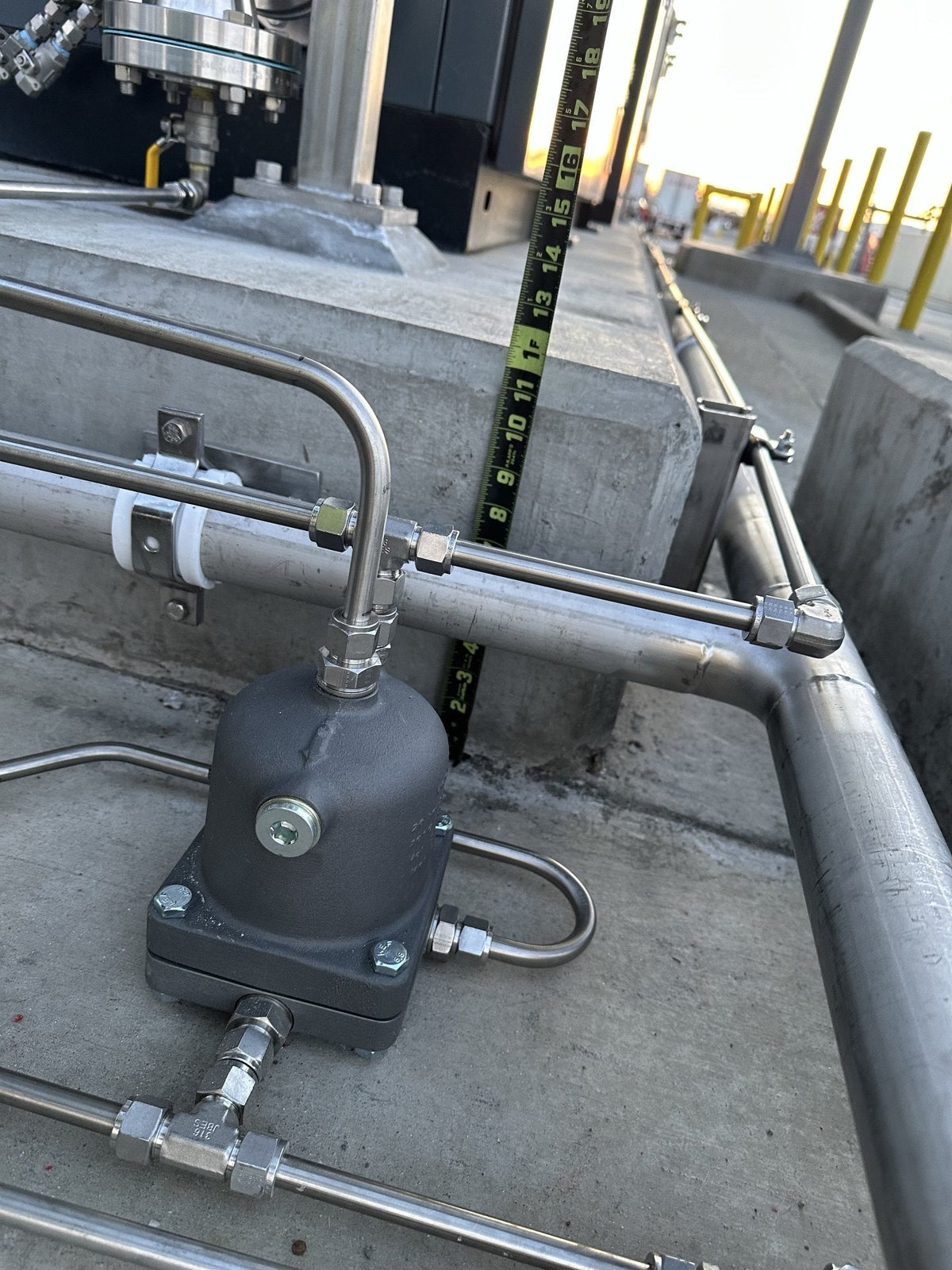

1/2" 304 stainless steel tube drain lines for a nitrogen generator system at a food and beverage facility. Each run was bent and routed along the concrete pad, supported every few feet and connected with stainless compression fittings to the generator's valves and drain points.

Fittings and drain points

Close-up of stainless steel instrument tubing with compression fittings feeding a gray cast valve body, beside a welded stainless pipe elbow

Stainless steel tube runs with bends and a welded header leading to a valve on a concrete pad

The tube runs

Stainless steel pipe and small-bore tube runs routed along a concrete trench to a vertical separator vessel

Long run of welded stainless pipe with parallel instrument tubing and clamp supports along an industrial concrete pad

Stainless steel pipe and tube run along an industrial equipment pad at sunset

Tie-in and overview

Welded stainless pipe run with tube tie-in at an equipment pad, with a gray valve body and bent tubing loops in the foreground

Wide view of stainless steel piping installed along a concrete pad under a covered equipment canopy

Need stainless tubing or piping bent, fitted and installed on site for a food and beverage or other industrial facility? Request a quote.
